Name: China VOITH IPVP4-13-101 Hydraulic Gear Pump Suppliers - Yanhui Hydraulic
Brand: Yanhui
SKU: 306822650

Guangdong Yanhui Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of voith ipvp4-13-101 hydraulic gear pump in China. We warmly welcome you to wholesale bulk voith ipvp4-13-101 hydraulic gear pump for sale here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.

Product Overview

▔▔

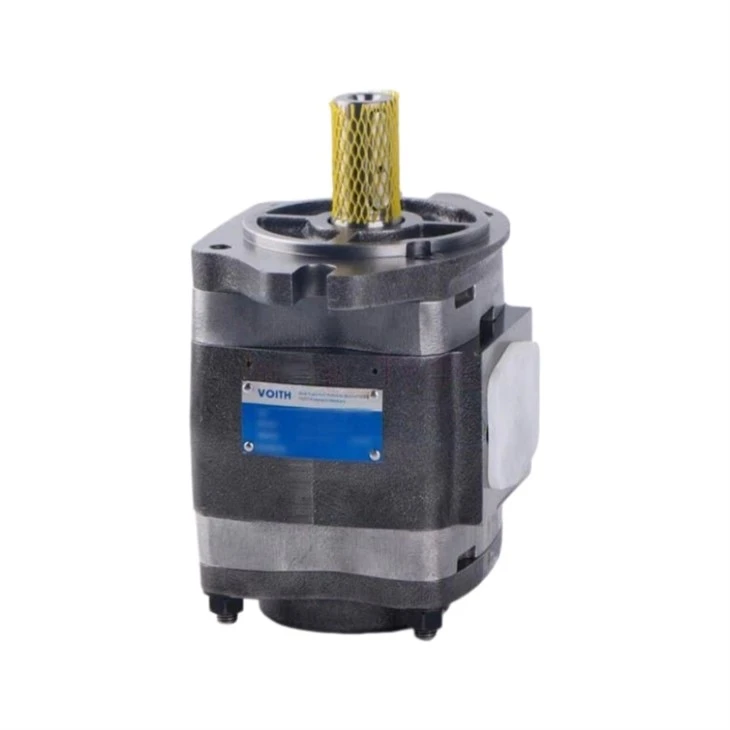

The VOITH IPVP4-13-101 is a premium-tier, high-pressure internal gear pump engineered explicitly for variable-speed drive systems. Manufactured by Voith Turbo, a global leader in precision hydraulics, this pump is designed to deliver consistent fluid power under heavy mechanical loads. It stands out in the marketplace by combining advanced gap-compensation technology with robust structural integrity, offering an ideal balance of energy efficiency and operational longevity.

Key Advantages

▔▔

Superior Energy Efficiency: Achieves up to 5% to 10% better volumetric efficiency than standard gear pumps, drastically reducing energy consumption when paired with servo-drives.

Ultra-Low Noise Emissions: Optimized internal gear geometry ensures quiet operation (often under 45 dB(A)), fostering a safer and more comfortable working environment.

Excellent Pressure-Hold Capability: Specifically designed to sustain maximum pressure even at extremely low rotational speeds or standstill conditions.

Low Pressure Pulsation: Micro-engineered fluid transition zones eliminate fluid spikes, resulting in smooth, vibration-free machinery operation.

Technical Specifications

▔▔

Parameter	Specification Details
Pump Type & Series	High-Pressure Internal Gear Pump (IPVP Series)
Frame Size	Size 4
Displacement Volume	13.3 cm³/revolution
Continuous Operating Pressure	315 Bar (4,560 PSI)
Peak Operating Pressure	345 Bar (5,000 PSI)
Minimum Rotational Speed	400 RPM
Maximum Rotational Speed	3,000 RPM
Direction of Rotation	Clockwise (Standard right-hand rotation)
Recommended Fluid Medium	HLP Mineral Oils (DIN 51524, Part 2 or 3)
Fluid Viscosity Range	10 to 300 mm²/s (cSt)
Permissible Fluid Temperature	-20°C to +80°C (-4°F to +176°F)
Mounting Flange Style	SAE 2-hole flange (ISO 3019/1 compliant)

Applications

▔▔

Industry Sector	Primary Machine Application	Role of the IPVP Pump
Plastics & Rubber	Injection Molding Machinery	Provides precise, variable-speed pressure to mold components accurately without wasting power.
Metalworking	Hydraulic Pressing & Bending	Delivers reliable high-tonnage force while holding pressure at standstill during cycles.
Material Handling	Heavy Lifting Platforms & Cranes	Ensures smooth, jerk-free vertical movement due to low fluid pulsation characteristics.
Automotive	Die-Casting & Punching Equipment	Sustains fast cycle times and survives rigorous multi-shift factory operations.

Related Models

▔▔

Model Number	Displacement (cm³/rev)	Continuous Pressure (Bar)	Peak Pressure (Bar)	Max Speed (RPM)
IPVP4-13-101	13.3	315	345	3,000
IPVP4-16-101	16.0	315	345	3,000
IPVP4-20-101	20.3	280	315	3,000
IPVP4-25-101	25.4	250	280	2,800
IPVP4-32-101	32.6	210	230	2,500

FAQ

▔▔

Q1: What does the code "13-101" signify in the model number?

A: The "13" denotes the nominal displacement of the pump, which is approximately 13.3 cubic centimeters of fluid per shaft revolution. The suffix "101" refers to the specific design series and standard interface layout, indicating a clockwise rotation configured with standard SAE mounting flanges and shafts.

Q2: Can the IPVP4-13-101 pump run continuously at its peak pressure of 345 Bar?

A: No, peak pressure ratings are intended only for short intervals. According to Voith specifications, peak pressures should not exceed 15% of the overall machine operating cycle time, with a maximum continuous spike duration of 1 minute. For everyday continuous work, the system should be regulated at or below 315 Bar.
