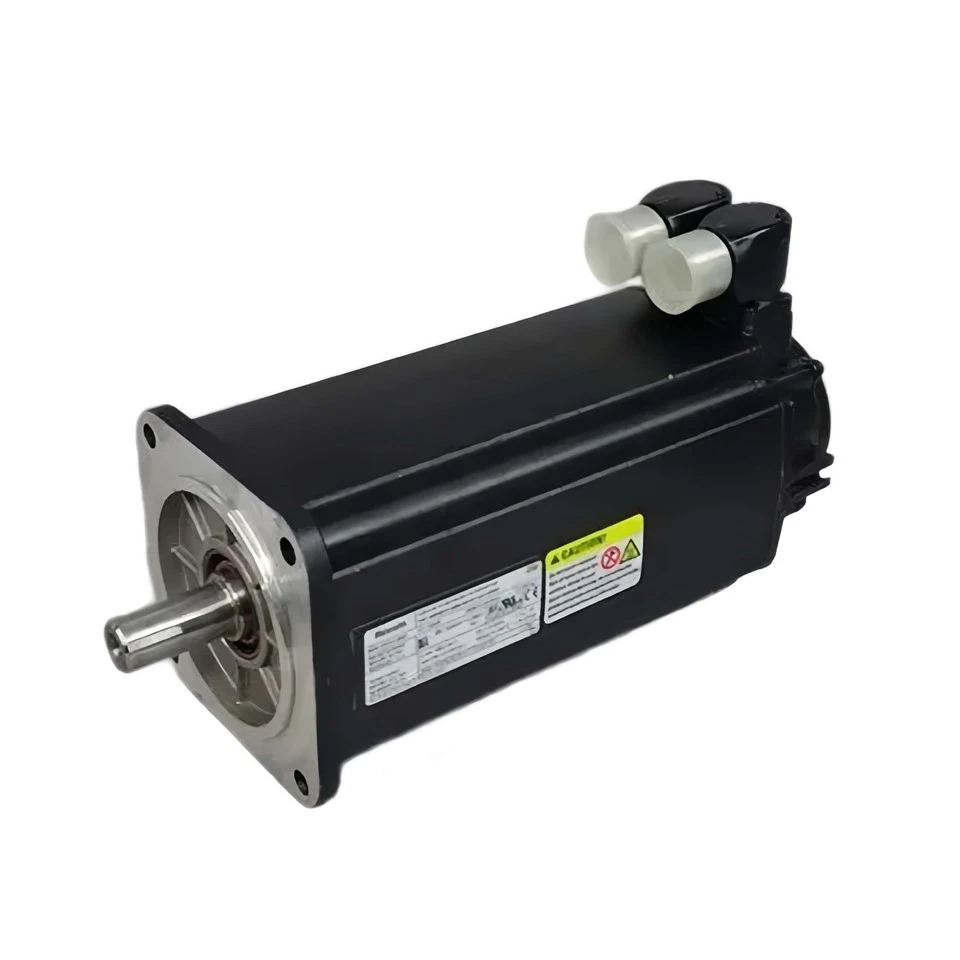

MSK061C

Product Overview

Key Advantages

• High Torque Density and Wide Speed Range: Delivers a maximum continuous torque output up to 8.0 Nm and maximum rotation speed up to 6000 RPM, ensuring rapid response in high-cycle dynamic control loops.
• High-Precision Absolute Feedback: Integrated high-resolution optical singleturn or multiturn absolute encoders (Hiperface interface with 128 signal periods) for precise position sensing without loss of reference during power outages.
• Flexible Connector Orientation: Features 240 degree rotatable power and encoder electrical connectors, enabling effortless cable routing in tight spaces.
• Robust Protection Rating: IP65 enclosure protection class ensures durable operation in harsh hydraulic oil-spray, high-humidity, and heavy dust environments.
• Flexible Thermal Management: Supports natural convection cooling and optional forced air blower or liquid cooling options for enhanced continuous output capability.

Technical Specifications

▔▔

Configuration Options

Structural Frame and Length: Frame size 061 with active stack length C for medium-to-high power output density.

Cooling Methods: Standard natural convection cooling (NN), option for forced ventilation blower (FN/SA), or liquid cooling circuit (LN).

Feedback / Encoder Types:

• S1: Optical singleturn absolute encoder, Hiperface (128 signal periods).
• M1: Optical multiturn absolute encoder, Hiperface (128 signal periods).
• S3 / M3: Capacitive absolute encoder options.

Output Shaft Configuration:

• Plain cylindrical shaft with radial shaft sealing ring.
• Keyway shaft (DIN 6885-1) with radial shaft sealing ring.

Holding Brake Option:

• Without holding brake (UG0 / UP0).
• Electrically released holding brake included (UG1 / UP1).

Electrical Connection: 240 degree rotatable quick-connect plug sockets for power and encoder cables.

Key Materials and Components

▔▔

• Shaft Sealing Ring: High-performance FKM (Viton) radial sealing ring, delivering high wear resistance and oil-spray tolerance against hydraulic fluids.
• Permanent Magnets: High-grade NdFeB (Neodymium Iron Boron) rare-earth magnets, featuring high thermal stability and resistance to demagnetization under peak load currents.
• Winding Insulation System: Class 155 (F) copper wire insulation and impregnating resin, preventing short circuits under prolonged thermal stress.
• Optical Encoder Module: High-precision optical scale assembly sealed inside heavy-duty aluminum housing to protect electronics from vibration and oil mist.
• Housing Enclosure: Cast aluminum housing with precision anti-corrosion coating, offering fast heat dissipation and structural strength under high torque peaks.

Packaging and Transport Protection

▔▔

• Individual Protection: Vacuum-sealed anti-static and anti-moisture VCI foil packaging with desiccant packs inside.
• Shock Absorption: Custom-fitted high-density EPE molded foam inserts surrounding the motor body, encoder end-cap, and drive shaft.
• Shaft Protection: Rigid plastic protective sleeve installed over the motor extension shaft and keyway.
• Outer Container: Heavy-duty reinforced double-wall corrugated carton for single unit export, or wooden pallet case with heavy-duty banding for batch orders.
• Batch Shipping: Palletized packaging wrapped with multi-layer stretch film and strapping bands to eliminate shifting during ocean or air transport.

Applications

• Servo-Hydraulic Variable Speed Pump Units: Used as the primary drive motor powering internal gear pumps or axial piston pumps, providing direct pressure and displacement modulation to achieve up to 70 percent energy savings compared to conventional constant-speed hydraulic power units.
• Hydraulic Injection Molding Machines: Controls the injection axis, mold clamping cylinder pressure loops, and screw plasticizing functions with rapid velocity acceleration and smooth hold-pressure transitions.
• Precision Hydraulic Bending Presses and Shears: Drives the upper beam positioning axes and proportional servo valves, ensuring micron-level stroke repeatability and precise press-force control.
• CNC Machine Tool Hydraulic Tool Clamping and Axis Drives: Provides stable, continuous torque for hydraulic tool-unclamping power units and rotary feed tables.

Related Models

▔▔

FAQ

Q1: How do I verify and decode the full MSK061C model number code?

A1: The model code specifies key parameters: MSK = Series, 061 = Motor Frame Size, C = Length, 0600 = Winding Code, NN = Cooling Method (Natural Convection), M1/S1 = Encoder Type, UP/UG = Shaft Type and Holding Brake Option. Please check the nameplate on your existing motor or consult our team before ordering.

Q2: What are the maintenance requirements for hydraulic oil cleanliness when MSK motors are combined with servo pumps?

A2: For integrated servo-hydraulic pump systems driven by MSK061C motors, hydraulic fluid cleanliness must meet ISO 4406 standard 18/16/13 or cleaner (filtering accuracy equal to or finer than 10 microns) to prevent pump wear and seal degradation.
