Guangdong Yanhui Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of rexroth r902230014 axial piston motor in China. We warmly welcome you to wholesale bulk rexroth r902230014 axial piston motor for sale here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.

Product Overview

▔▔

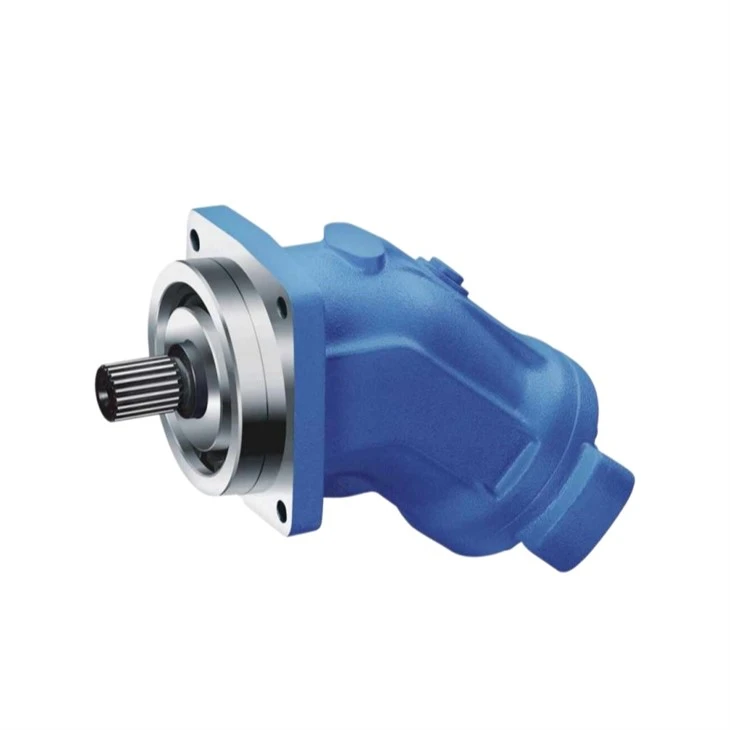

The Rexroth R902230014 (Model Designation: A2FM16/61W-VBB030 GO2EU) is a high-performance hydraulic fixed displacement motor engineered by Bosch Rexroth. Operating on a robust 40-degree bent-axis design, this motor efficiently converts hydraulic fluid pressure into reliable rotary mechanical power. It is perfectly suited for both open and closed circuits, making it an excellent all-purpose choice for demanding industrial and mobile machinery.

Key Advantages

▔▔

High Power Density: Delivers exceptional torque and speed relative to its compact, space-saving size.

Optimized Efficiency: Features a specialized tapered piston rotary group that reduces friction and maximizes output.

Bi-directional Rotation: Designed for alternating (W) rotation, allowing the motor to drive loads smoothly in both directions.

Long-lasting Seals: Equipped with premium FKM (fluoroelastomer) seals to withstand high temperatures and prevent leakage.

Technical Specifications

▔▔

Parameter Description	Technical Value / Specification
Part Number / Model Code	R902230014 / A2FM16/61W-VBB030 GO2EU
Displacement (Size)	16 cm³
Nominal Operating Pressure	400 bar (5,800 psi)
Maximum Peak Pressure	450 bar (6,525 psi)
Maximum Rotation Speed	8,000 rpm
Maximum Input Fluid Flow	128 L/min
Output Torque (at 400 bar)	100 Nm
Direction of Rotation	Alternating / Bi-directional (W)
Shaft End Profile	Parallel Keyed Shaft (B-type, DIN 6885)
Sealing Material Type	FKM (Fluoroelastomer)
Mounting Flange Specification	4-hole ISO 3019-2 Standard
Net Product Weight	Approx. 5.4 kg (11.9 lbs)

Applications

▔▔

Application Area	Specific Equipment Usage	Motor Role & Benefits
Mobile Construction	Excavator swing drives, small wheel loaders, and track drives.	Provides smooth, jerky-free rotating control under immense load weights.
Agriculture & Forestry	Harvester cutting heads, wood shredders, and seeding machines.	Maintains stable rotating speeds despite changing crop and wood density.
Industrial Manufacturing	Conveyor belt systems, mixing units, and factory winches.	Compact size allows it to fit neatly into tight machinery frames.
Marine & Offshore	Deck winches, small anchor hoists, and steering gears.	High-grade FKM seals protect the unit against saltwater corrosion and heat.

Related Models

▔▔

Part Number	Full Model Designation	Primary Variation Details
R902230014	A2FM16/61W-VBB030 GO2EU	Standard Base Model (16 cm³, Keyed Shaft)
R902230013	A2FM16/61W-VAB030 GO2EU	Features a Splined Shaft instead of a Keyed Shaft
R902230015	A2FM16/61W-VBB040 GO2EU	Different Working Port size and location layout
R902230016	A2FM160/61W-VAB010 GO2EU	Large-capacity 160 cm³ Displacement frame size
R902230024	A2FM28/61W-VAB010 GO2EU	Mid-sized 28 cm³ Displacement variant

FAQ

▔▔

Q1: What does the "A2FM16/61W-VBB030" code stand for?

A: This is the structured model code. "A2FM" specifies a fixed displacement bent-axis motor; "16" means a 16 cm³ displacement; "61" identifies the product series; "W" indicates alternating rotation; "V" stands for FKM seals; and "BB030" defines the parallel keyed shaft and side port configurations.

Q2: Can I run this motor in both clockwise and counter-clockwise directions?

A: Yes. The "W" designation in the model name means it has an alternating direction of rotation. It is fully optimized to run efficiently in both directions depending on which port receives the fluid pressure.
