Product Overview

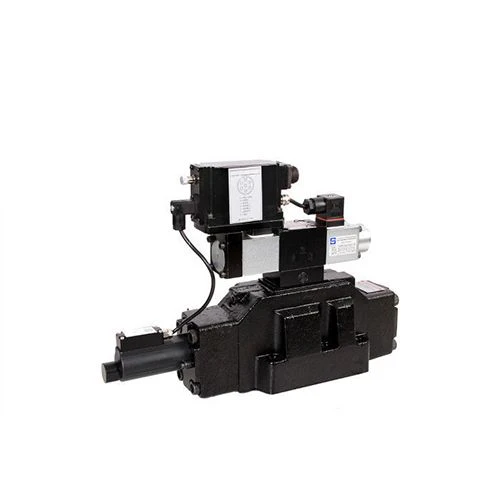

▔▔The Atos DPZO series consists of two-stage proportional directional valves designed for high-performance electro-hydraulic control systems. Functioning as pilot-operated proportional direction and speed control valves, the DPZO series regulates hydraulic fluid flow direction and rate in direct proportion to an electrical input signal. Positioned as a premium industrial-grade solution within the Atos proportional valve lineup, the DPZO series excels in heavy-duty, high-flow, and high-pressure applications where direct-operated valves reach their capacity limits.
Technical Specifications
▔▔
| Technical Parameter | Specification / Value |
| Max Operating Pressure | Ports A, B, P: up to 350 bar; Port T: up to 210 bar (external drain) / 160 bar (internal drain) |
| Maximum Flow Rate |
Size 10 (DPZO-A-1...): up to 180 L/min
Size 16 (DPZO-A-2...): up to 350 L/min
Size 25 (DPZO-A-3...): up to 680 L/min
Size 32 (DPZO-A-4...): up to 1100 L/min |
| Recommended Fluid Viscosity | 20 to 100 mm²/s (Operating range: 15 to 380 mm²/s) |
| Fluid Temperature Range | -20°C to +60°C (Standard NBR seals); -20°C to +80°C (FKM / Viton seals) |
| Hysteresis | < 1% of maximum stroke (digital LVDT integrated control models) |
| Response Time | 20 ms to 60 ms (depending on valve size and pilot supply pressure) |
| Repeatability | < 0.1% to 0.5% |
| Recommended Filtration Level | ISO 4406 class 18/16/13 (using 10 µm absolute filter element) |
Configuration Options
▔▔
- Structure: Two-stage construction featuring a direct-operated pilot valve mounted on a main stage body. Available with optional internal or external pilot pressure supply and pilot drain.
- Control Type: Analog control (+/-10V, 4-20mA) or Digital On-Board Electronics (OBE) supporting fieldbus communications (CanOpen, PROFIBUS DP, EtherCAT).
- Feedback Mechanism: Open-loop control (DPZO-A models) or closed-loop position control with high-precision LVDT spool position sensors (DPZO-TEB, DPZO-TES models).
- Rated Flow Spool Profiles: Linear flow spools, progressive flow spools, and symmetrical/asymmetrical flow configurations to accommodate diverse cylinder differential ratios.
- Mounting Interface: ISO 4401 subplate mounting (Size 10, Size 16, Size 25, Size 32 / CETOP 05, 07, 08, 10).
- Electrical Configuration: 7-pin or 12-pin main connectors; IP65/IP67 ingress protection rated connector plugs.
Key Materials and Components
▔▔
- Hardened Steel Valve Spool and Sleeve: Main stage and pilot spools are manufactured from hardened alloy steel, micro-ground to sub-micron tolerances to guarantee minimal internal leakage, high wear resistance, and long-term positioning accuracy under extreme operating pressures.
- Ductile Iron Body: Main valve bodies are cast from high-strength ductile cast iron (GJS-400), offering exceptional structural integrity, vibration dampening, and resistance to high-pressure shock spikes.
- FKM (Viton) / NBR Seals: Standard models utilize high-grade NBR O-rings for mineral oils, while option /PE specifies Viton (FKM) fluorocarbon seals for phosphate ester synthetic fluids and elevated working temperatures.
Packaging and Transport Protection
▔▔
- Anti-Corrosion Treatment: Internal valve cavities are coated with rust-inhibiting oil, and all fluid ports are sealed with heavy-duty plastic plugs.
- Vapor Barrier Packaging: Each valve is sealed in a moisture-proof, anti-static VCI (Vapor Corrosion Inhibitor) polybag containing desiccant packs.
- Shock-Absorbing Protection: Valves are encased in custom high-density polyethylene foam cradles inside reinforced double-wall corrugated cartons.
- Bulk & Palletized Transport: Large orders or heavy-tonnage Size 25/32 valves are secured onto IPPC-certified wooden pallets, edge-protected, wrapped in stretch film, and strapped to withstand marine and air freight hazards.
Applications
▔▔- Plastic Injection Molding Machines: Used for precise multi-stage velocity control during mold clamping and injection strokes to eliminate mechanical impact and short shots.
- Metal Stamping Presses and Forging Equipment: Applied in main cylinder speed profiling and cushion cylinder pressure/position synchronization.
- Die Casting Machinery: Provides rapid flow acceleration and tight speed control during metal shot injection cycles.
- Steel Rolling Mills: Used in hydraulic roll gap adjustment (AGC systems) and side guide position control under severe continuous duty cycles.
- Wood Processing & Plywood Presses: Enables smooth proportional synchronization of multi-cylinder press platens to prevent platen tilting.
Related Models
▔▔
| Valve Model | Size / Interface | Feedback Type | Control / Electronics Type |
| DPZO-A-171-L5 | Size 10 / CETOP 05 | Open-Loop | External Amplifier Driver Required |
| DPZO-A-273-S5 | Size 16 / CETOP 07 | Open-Loop | External Amplifier Driver Required |
| DPZO-TEB-SN-NP-271-L5 | Size 16 / CETOP 07 | Closed-Loop (LVDT) | Basic On-Board Digital Electronics |
| DPZO-TES-SN-NP-373-D5 | Size 25 / CETOP 08 | Closed-Loop (LVDT) | Full Digital On-Board Electronics (Analog / Fieldbus) |
| DPZO-TES-SN-NP-473-L5 | Size 32 / CETOP 10 | Closed-Loop (LVDT) | Full Digital On-Board Electronics |
FAQ
▔▔Q1: How do I verify the correct model code for replacing an existing DPZO valve?
A1: Check the full model code printed on the valve nameplate. Pay close attention to the size suffix, spool code (e.g., L5, S5, D5), seal type, pilot configuration (internal/external supply and drain), and driver type (A for analog external, TEB/TES for digital on-board).
Q2: What cleanliness level and oil filtration are required for Atos DPZO valves?
A2: Proportional valves require high fluid cleanliness. We recommend maintaining fluid cleanliness at ISO 4406 class 18/16/13 or cleaner, using an absolute 10-micron filter inline before the valve.
Q3: What type of hydraulic fluid is suitable for DPZO valves?
A3: Standard mineral-based hydraulic oils (HLP / HM) conforming to DIN 51524 are standard. For fire-resistant fluids such as phosphate esters, specify the /PE option with Viton seals.
