Name: China Yuken AR22-FR01C-22 Hydraulic Pisotn Pump Suppliers - Yanhui Hydraulic
Brand: Yanhui
SKU: 298131831

Guangdong Yanhui Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of yuken ar22-fr01c-22 hydraulic pisotn pump in China. We warmly welcome you to wholesale bulk yuken ar22-fr01c-22 hydraulic pisotn pump for sale here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.

Product Overview

▔▔

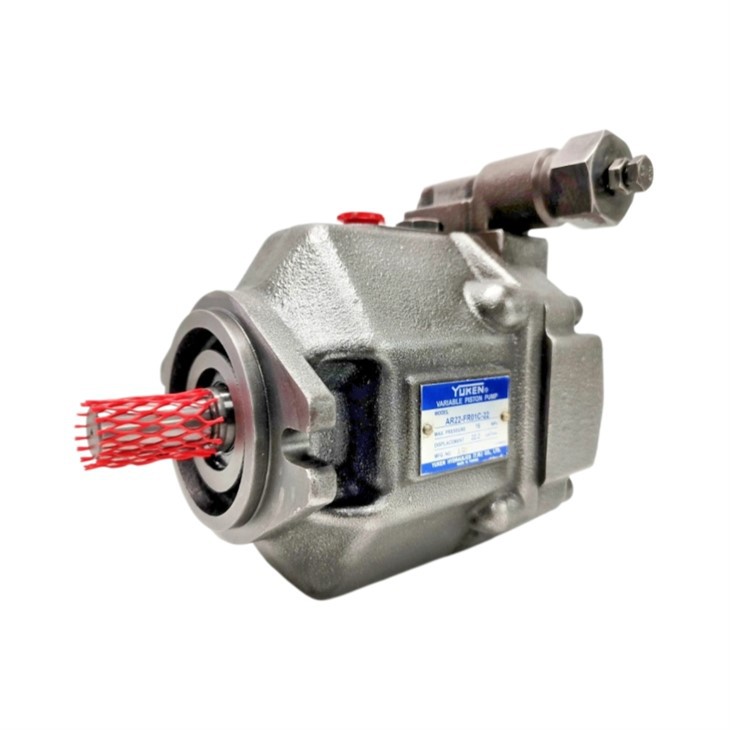

The Yuken AR22-FR01C-22 Hydraulic Piston Pump is a highly efficient, variable displacement axial piston pump. Developed by Yuken, a trusted global leader in hydraulics, the AR series is famous for combining excellent pressure performance with a compact, lightweight design. It is an ideal choice for users looking to save energy and reduce noise in their machinery.

Key Advantages

▔▔

Excellent Efficiency: High volumetric and mechanical efficiency lowers energy consumption and reduces heat buildup in the oil.
Low Noise Operation: Special design elements significantly quiet the pump, creating a safer and more comfortable work environment.
Compact & Lightweight: The body utilizes an aluminum die-cast housing, making it much lighter and easier to install than traditional iron pumps.
Stable Pressure Control: The response time of the pressure compensator is highly reliable, ensuring smooth machinery operations.

Technical Specifications

▔▔

Parameter	Specification
Pump Type	Variable Displacement Axial Piston Pump
Geometric Displacement	22.2 cm³/rev (1.35 cu. in./rev)
Max. Operating Pressure	16 MPa (2320 PSI)
Pressure Adjustment Range	1.5 to 7 MPa (218 to 1015 PSI)
Max. Speed Range	600 – 1800 RPM
Direction of Rotation	Clockwise (Right-Hand)
Mounting Type	SAE 2-Bolt Flange Mount
Approximate Weight	9.5 kg (20.9 lbs)

Applications

▔▔

Industrial Sector	Machine Application	Main Benefit
Machine Tools	CNC Lathes & Milling Units	Compact size fits small spaces; low noise improves the shop floor environment.
Industrial Pressing	Small Hydraulic Presses	Pressure compensator saves energy during holding cycles.
Automation	Factory Packaging Conveyors	Highly responsive flow adjustments keep lines running smoothly.
Textiles	Fabric Baling Machines	Reliable, continuous duty cycle with minimal heat generation.
Lifting Systems	Small Scissors Lifts	Smooth fluid delivery prevents jerky lifting movements.

Related Models

▔▔

Model	Displacement (cm³/rev)	Pressure Range (MPa)	Port Type	Notes / Application
AR22-FR01C-22	22.2	16 rated / 21 max	Flange / Axial	Current standard model, variable displacement, medium-high pressure
AR22-FR01B-22	22.2	14 rated / 20 max	Flange / Axial	Lower pressure variant of AR22 series
AR22-FR01C-20	22.2	16 rated / 21 max	Side Port	Alternate port design for installation flexibility
AR16-FR01C-22	15.8	16 rated / 21 max	Flange / Axial	Smaller displacement, suitable for lower flow systems
AR16-FR01B-22	15.8	14 rated / 20 max	Flange / Axial	Lower pressure variant of AR16 series
AR22-FR01C-S20	22.2	16 rated / 21 max	Side Port	Side port version of AR22-FR01C for compact installation
AR22-FR01B-S20	22.2	14 rated / 20 max	Side Port	Lower pressure, side port design

FAQ

▔▔

Q1: What is the main difference between the "01B" and "01C" versions of this pump?

A: The difference lies in the pressure adjustment range of the compensator. The "01B" version adjusts from 1.2 to 5.5 MPa, while the "01C" version handles a higher range of 1.5 to 7 MPa.

Q2: Can I run the AR22-FR01C-22 pump in reverse (Counter-Clockwise)?

A: No. The "R" in the model code stands for right-hand (clockwise) rotation. Running the pump in the wrong direction can cause severe internal damage to the pistons and valve plate within seconds.
