Product Overview

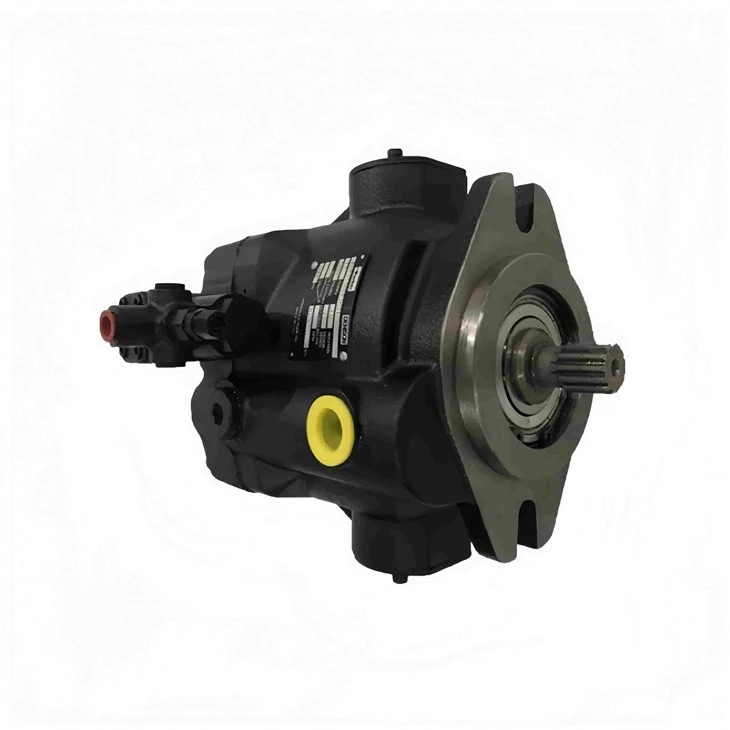

▔▔The Parker Hydraulic Plunger Pump (commonly referred to as a piston pump) is a heavy-duty, high-performance displacement pump engineered for demanding mobile and industrial hydraulic systems. Known for exceptional volumetric efficiency, long service life, and robust pressure handling, Parker plunger pumps deliver reliable power density under extreme operational conditions.
Key Advantages
▔▔-
High Operating Pressure: Capable of continuous working pressures up to 350–420 bar (5,000–6,000 PSI).
Superior Volumetric Efficiency: Precision-machined plungers minimize fluid bypass and thermal loss.
Compact Power Density: Provides high power output relative to its physical footprint.
Low Noise Emissions: Advanced swashplate and port plate design significantly lower operational noise levels.
Versatile Controls: Available with pressure compensation, load sensing, electronic displacement, and torque limiting controls.
-
Technical Specifications
▔▔| Specification Parameter | Value / Range |
| Max Operating Pressure | Up to 420 bar (6,090 PSI) |
| Displacement Range | 10 cc/rev – 500+ cc/rev |
| Max Speed (RPM) | 1,800 – 3,600 RPM (depending on model & fluid) |
| Volumetric Efficiency | > 95% |
| Fluid Temperature Range | -25°C to 90°C (Standard Seals) |
| Fluid Viscosity Range | 10 to 1,000 m㎡ |
| Control Types | Manual, Hydraulic, Proportional Electric, Load Sensing (LS) |
| Mounting Standard | SAE, ISO 4-bolt / 2-bolt flange options |
Applications
▔▔| Application Sector | Key Usage / Machinery | Primary Benefit |
| Construction Equipment | Excavators, Wheel Loaders, Concrete Pumps | Precise load-sensing control, fuel savings |
| Industrial Machinery | Hydraulic Presses, Injection Molding, Stamping | High continuous pressure, minimal noise |
| Mining & Material Handling | Drilling Rigs, Conveyors, Mobile Cranes | High thermal shock resistance, durable seals |
| Marine & Offshore | Winches, Steering Gear, Deck Cranes | Salt-spray protection, heavy-duty bearings |
| Commercial Vehicles | Garbage Trucks, Snowplows, Utility Aerial Lifts | Compact PTO direct mounting, long life |
Related Models
▔▔| Series | Type | Application Focus | Key Feature |
| P2 / P3 Series | Variable Axial Piston | Mobile Machinery | Compact design, high self-priming speeds |
| PV / PVplus Series | Variable Axial Piston | Industrial Hydraulics | Ultra-quiet, ripple-optimized swashplate |
| F11 / F12 Series | Fixed Bent-Axis Piston | Heavy Mobile & Marine | Extreme efficiency, high shaft speeds |
| PAVC Series | Variable Supercharged | Medium-Duty Industrial | Built-in supercharge capability for high speed |
| VP1 Series | Variable Truck Pump | Commercial Vehicles / Cranes | Direct-mount to PTO, auto-disengagement |
FAQ
▔▔
Q1: What is the main difference between a Parker plunger pump and a gear pump?
A: Parker plunger (piston) pumps handle much higher operating pressures (up to 420 bar) and offer variable displacement options for dynamic energy saving, whereas gear pumps are generally fixed displacement and suited for lower-pressure applications (under 250 bar).
Q2: What type of hydraulic oil should be used with Parker plunger pumps?
A: Premium mineral-based hydraulic oils meeting ISO VG 32, VG 46, or VG 68 (DIN 51524 part 2/3) are recommended. Synthetic or fire-resistant fluids can also be used, provided compatible seal materials (such as Viton/FKM) are specified.
