Product Overview

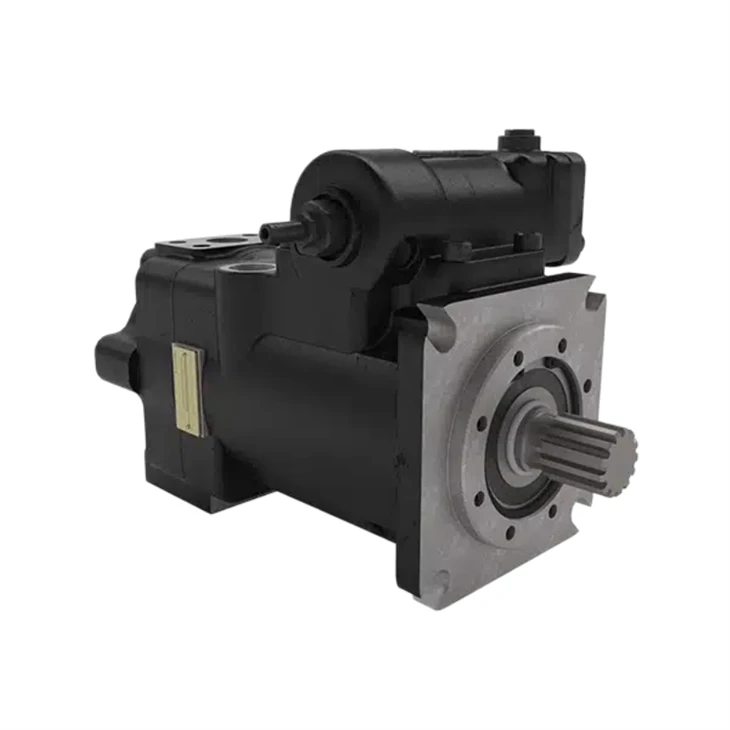

▔▔The Oilgear PVG-180 is a high-performance, open-loop axial piston pump designed for demanding industrial and mobile applications. Engineered by Oilgear, a pioneer in heavy-duty fluid power systems, the PVG-180 delivers exceptional reliability, high pressure capabilities, and precise control under the toughest operating conditions.
Key Advantages
▔▔-
High-Pressure Performance: Capable of handling continuous operations at pressures up to 350 bar (5,000 psi), making it ideal for heavy-duty machinery.
Hydrodynamic Thrust Bearings: Equipped with proprietary hydrodynamic thrust bearings that reduce wear, allow for operation with low-viscosity fluids, and significantly extend service life.
Fast Response Controls: Offers a modular suite of rapidly responding control options (including pressure compensation, horsepower limiting, and electronic displacement control) to maximize system efficiency.
Compact Footprint: High power density package that delivers massive output without occupying excessive space in your hydraulic power unit (HPU).
Rugged Construction: Built with high-strength materials to withstand extreme environmental conditions, high shock loads, and continuous-duty cycles.
-
Technical Specifications
▔▔| Parameter | Specification |
| Maximum Displacement | 180.0 cc/rev (11.00 in³/rev) |
| Continuous Operating Pressure | 350 bar (5,000 psi) |
| Peak/Intermittent Pressure | 400 bar (5,800 psi) |
| Maximum Rated Speed (at full displacement) | 1,800 rpm |
| Minimum Operating Speed | 600 rpm |
| Maximum Flow Rate (at 1,800 rpm) | ~324 L/min (85.6 gpm) |
| Input Power (at max pressure & speed) | ~189 kW (253 hp) |
| Weight (Approximate dry weight) | 102 kg (225 lbs) |
| Fluid Viscosity Range | 13 to 860 cSt (65 to 4000 SUS) |
Applications
▔▔| Industry Sector | Key Application | Why the PVG-180 is Used |
| Metal Forming & Pressing | Forging presses, stamping machines, extrusion presses | High continuous pressure stability and rapid cycle times. |
| Marine & Offshore | Winch drives, steering gear, crane hydraulics, jack-up systems | High tolerance to harsh environments and specialized fluids. |
| Oil & Gas | Top drives, blow-out preventers (BOPs), rig power units | Reliable fail-safe operations and explosive-environment compatibility. |
| Civil Engineering | Tunnelling machines, heavy lifting systems, large dam gates | Precise electronic control over massive forces. |
| Recycling Industry | Scrap metal balers, industrial shredders, waste compactors | Handles high-shock load conditions and frequent pressure spikes easily. |
Related Models
▔▔| Model Code Series | Displacement | Control Configuration Type | Key Feature |
| PVG-180-F1UV-LDFY | 180 cc/rev | Pressure Compensator & Load Sensing | Optimizes flow based on system load |
| PVG-180-F1UV-RMOS | 180 cc/rev | Proportional Electronic Control | Digital/Remote flow adjustment |
| PVG-150 | 150 cc/rev | Standard Mechanical/Hydraulic | Smaller displacement sibling |
| PVG-130 | 130 cc/rev | Multiple Control Options | Medium-heavy frame size |
| PVG-075 / 100 | 75 / 100 cc/rev | Single/Dual Control | Low-to-mid displacement range |
FAQ
▔▔
Q1: What types of hydraulic fluids can be used with the Oilgear PVG-180?
The PVG-180 is highly versatile. It can run on standard mineral-based hydraulic oils, high-water content fluids, water-glycols, skim oils, and environmentally friendly synthetic esters. Always verify seal compatibility (e.g., Viton vs. Buna) relative to your specific fluid choice.
Q2: Can the PVG-180 pump be mounted in tandem with other pumps?
Yes. The PVG-180 comes with an optional thru-drive shaft configuration. This allows you to mount a secondary pump (either another PVG pump or a smaller gear/vane pump) directly to the rear of the unit to run off the same electric motor or engine.
