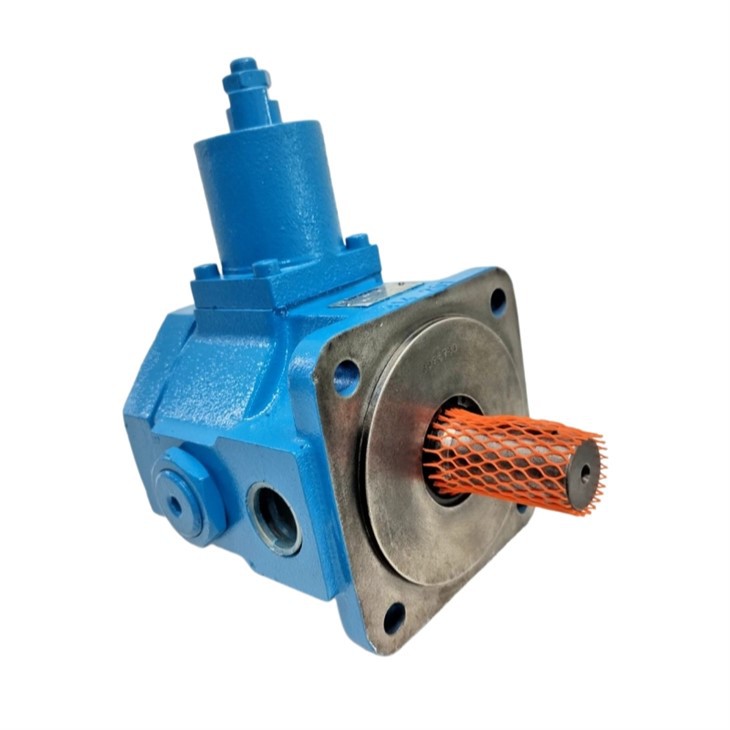

Guangdong Yanhui Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of vickers vva40fp-c-cww20 hydraulic pump in China. We warmly welcome you to wholesale bulk vickers vva40fp-c-cww20 hydraulic pump for sale here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.
Product Overview
▔▔
The VVA40 series provides an ideal solution for systems requiring variable flow at a constant pressure. By automatically adjusting its fluid output based on system demand, it prevents the energy waste and excessive heat generation common in traditional fixed-displacement pumps.
Key Advantages
▔▔
- Built-in Pressure Compensator: Automatically reduces pump displacement to zero flow when the pre-set system pressure is reached, saving significant energy.
- Low Noise Profile: Features an advanced internal vane design that ensures whisper-quiet operation, making it ideal for indoor factory floors.
- Excellent Response Time: Fast compensation response ensures stable pressure control even during sudden, heavy load changes.
- Compact Footprint: High power density allows it to deliver substantial hydraulic force while taking up minimal space in power units.
Technical Specifications
▔▔
Parameter | Specification |
Pump Type | Variable Displacement Vane Pump |
Nominal Displacement | 40.0 cm³/rev (2.44 in³/rev) |
Maximum Operating Pressure | 70 bar (1,015 PSI) |
Pressure Adjustment Range | 15 bar to 70 bar |
Maximum Speed | 1,800 RPM |
Minimum Speed | 800 RPM |
Rotation Direction | Clockwise (CW, looking from the shaft end) |
Fluid Viscosity Range | 22 to 68 mm²/s (cSt) at normal operation |
Applications
▔▔
Industry Sector | Primary Application | Operational Benefit |
Machine Tools | Metal Cutting & CNC Lathes | Holds high pressure during clamping cycles with near-zero energy waste. |
Plastic Processing | Injection Molding Machines | Provides rapid pressure building and variable flow for complex molding steps. |
Automotive Assembly | Hydraulic Clamping & Pressing | Reduces factory floor heat generation and lowers overall power bills. |
Material Handling | Industrial Lifts & Conveyors | Delivers smooth, predictable acceleration and deceleration under varying weights. |
Related Models
▔▔
Model Series | Displacement Class | Control Options Available | Common Configurations |
VVA20 | 20 cm³/rev | Standard Compensator / Dual Pressure | VVA20FP-C-CWW, VVA20FP-C-CCW |
VVA40 | 40 cm³/rev | Standard Compensator / Remote Control | VVA40FP-C-CWW20 (Current Model) |
VVA56 | 56 cm³/rev | High-Pressure Compensator | VVA56FP-D-CWW20 |
VVA70 | 70 cm³/rev | Flow & Pressure Compensator (Load Sensing) | VVA70FP-C-CWW20 |
FAQ
▔▔
Q1: What does "pressure compensated" mean for the VVA40FP pump?
A: It means the pump monitors system pressure internally. When your machinery finishes a movement and holds a position, the pump automatically dials back its fluid output to near zero while holding the exact required pressure. This stops unnecessary oil from pumping, saving electricity.
Q2: Can I run this pump in a counter-clockwise (CCW) rotation?
A: No, the specific CWW20 model is factory-built exclusively for clockwise (CW) rotation. Running the pump backward will cause immediate mechanical damage to the internal vanes and cam ring due to a lack of lubrication.
Contact Us
▔▔
Request a Quote Today to ensure your hydraulic system performs at its best with genuine components from Yanhui Hydraulic.
