Guangdong Yanhui Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of rexroth pv7-17 hydraulic variable vane pump in China. We warmly welcome you to wholesale bulk rexroth pv7-17 hydraulic variable vane pump for sale here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.
Product Overview
▔▔

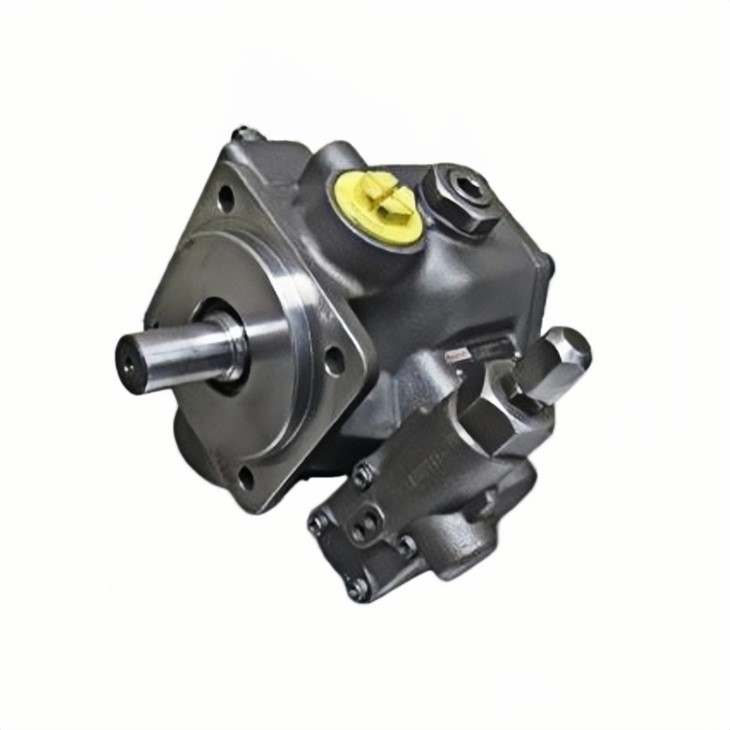

The PV7-17 is a variable displacement vane pump built to deliver efficiency and durability. Its unique design allows the flow to be adjusted without stopping the pump, enabling precise control over hydraulic operations. The low-noise design and compact structure make it easy to integrate into existing hydraulic circuits.
Key Advantages
▔▔
- Variable Displacement for Precise Control
- High volumetric efficiency
- Low pulsation and vibration
- Long operational life with minimal maintenance
- Robust design suitable for harsh environments
Technical Specifications
▔▔
| Parameter | Specification |
|---|---|
| Model | PV7-17 |
| Pump Type | Variable Vane Pump |
| Maximum Operating Pressure | 250 bar (3625 psi) |
| Maximum Flow Rate | 17 L/min |
| Displacement | 7 cc/rev |
| Speed Range | 500 – 4000 rpm |
| Fluid Type | Mineral-based hydraulic oils (HL, HLP) |
| Fluid Viscosity | 10 – 500 cSt |
| Mounting | SAE/BSP standard flange |
| Shaft Type | Splined or keyed shaft |
| Operating Temperature | -20°C to 80°C |
| Weight | 12 kg |
| Noise Level | Low pulsation, reduced vibration |
| Adjustment | Variable displacement, adjustable under load |
| Seal Material | NBR/FKM (compatible with standard hydraulic oils) |
| Life Expectancy | Several years under proper maintenance |
Applications
▔▔
- Mobile construction equipment like excavators and loaders
- Industrial machinery requiring precise pressure and flow control
- Agricultural equipment and irrigation systems
- Material handling machinery and forklifts
- Marine and offshore hydraulic systems
FAQ
▔▔
Q1: What makes the Rexroth PV7-17 pump different from other hydraulic pumps?
A1: The PV7-17 is a variable displacement vane pump, which allows you to adjust the flow without stopping the system. This provides precise control, lower energy consumption, and reduced wear compared to fixed displacement pumps.
Q2: What types of hydraulic systems are compatible with the PV7-17?
A2: It is compatible with both industrial and mobile hydraulic systems, including construction machinery, agricultural equipment, forklifts, marine applications, and automated production lines. It works best in systems requiring variable flow and pressure control.
Q3: How do I adjust the displacement on the PV7-17?
A3: The pump features an integrated adjustment mechanism. You can change the displacement while the pump is running, allowing for real-time flow control without system downtime.
Contact Us
▔▔
Yanhui Hydraulic Co., Ltd. is ready to provide technical support, product guidance and assistance with orders.
