Product Overview
▔▔

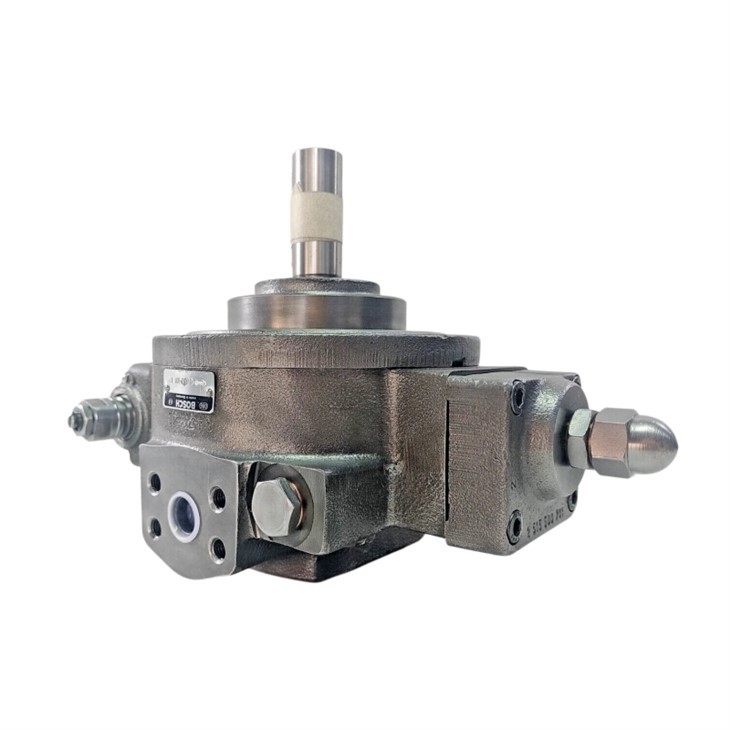

The Bosch 0514 300 022 Hydraulic Radial Piston Pump is a high-performance hydraulic pump designed for demanding industrial and mobile applications. Known for its durability, precision, and efficiency, this pump ensures stable hydraulic flow under high pressure, making it a preferred choice for industries requiring reliable and robust hydraulic solutions.
Key Advantages
▔▔
- High volumetric efficiency and low pulsation
- Excellent performance under varying loads
- Superior pressure handling for heavy-duty operations
- Long service life with proper maintenance
Technical Specifications
▔▔
| Category | Parameter | Specification |
|---|---|---|
| General Information | Product Name | Bosch Hydraulic Radial Piston Pump |
| Model | 0514 300 022 | |
| Brand | Bosch | |
| Product Type | Hydraulic Pump - Radial Piston | |
| Origin | Genuine Bosch Original | |
| Supplier | Yanhui Hydraulic Co., Ltd. | |
| Application | Industrial & Mobile Hydraulic Systems | |
| Hydraulic Performance | Rated Displacement | 32.3 cc/rev |
| Maximum Flow | 80 L/min (21.1 US gal/min) | |
| Maximum Pressure | 350 bar (5000 psi) | |
| Pressure at Maximum Speed | 280–350 bar | |
| Recommended Operating Range | Up to 320 bar | |
| Mechanical Specifications | Pump Type | Radial Piston (Fixed Displacement) |
| Mounting Type | Flange Mount | |
| Shaft Type | Splined Shaft | |
| Shaft Diameter | Bosch Standard | |
| Port Sizes | Inlet: 3/4" BSPP / Outlet: 3/4" BSPP | |
| Rotation | CW or CCW available | |
| Operating Conditions | Rated Speed | 500–2500 rpm |
| Maximum Speed | 3000 rpm | |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) | |
| Storage Temperature | -40°C to 100°C (-40°F to 212°F) | |
| Fluid Type | Mineral-based hydraulic oil (ISO VG 32–68) | |
| Filtration Requirement | ISO 4406 Class 18/16/13 or better | |
| Physical Data | Weight | 28 kg (61.7 lbs) |
| Dimensions | Length/Width/Height: per Bosch mechanical spec | |
| Housing Material | High-strength alloy steel | |
| Color | Industrial Black / Bosch Standard Finish | |
| Material / Construction | Pump Housing | Alloy Steel |
| Pistons | Hardened Steel | |
| Shaft | High-grade Steel | |
| Seals | NBR / FKM (depending on fluid & temperature) | |
| Compliance & Standards | ISO 9001 | Manufactured under ISO 9001 certified process |
| CE / RoHS | Compliant where applicable | |
| Safety | Meets industrial hydraulic safety guidelines | |
| Recommended Oils & Fluids | Hydraulic Oil | ISO VG32, VG46, VG68 |
| Anti-wear Additives | As recommended per Bosch | |
| Oil Cleanliness | ISO 4406 < 18/16/13 |
Applications
▔▔
- Industrial hydraulic presses and injection molding machines
- Mobile construction equipment such as excavators and cranes
- Marine and offshore hydraulic systems
- Machine tools requiring precise pressure control
- Agricultural machinery for efficient power transmission
Related Models
▔▔
- Bosch 0514 300 021 – Similar radial piston pump with slightly lower displacement
- Bosch 0514 300 023 – High-pressure variant for heavy-duty applications
- Bosch 0514 300 025 – Extended lifespan model for continuous operation
FAQ
▔▔
Q1: What is the maximum operating pressure of the Bosch 0514 300 022 pump?
A1: The pump is rated for a maximum pressure of 350 bar (5000 psi). Continuous operation should ideally stay within 320 bar to ensure long-term reliability.
Q2: What type of hydraulic fluid should be used?
A2: Use mineral-based hydraulic oils with ISO VG 32–68 viscosity. Ensure the fluid is clean and meets ISO 4406 class 18/16/13 or better to avoid premature wear.
Q3: Can this pump operate at variable speeds?
A3: Yes, the pump supports 500–2500 rpm, with a maximum of 3000 rpm. Performance and efficiency are optimal within the recommended range.
