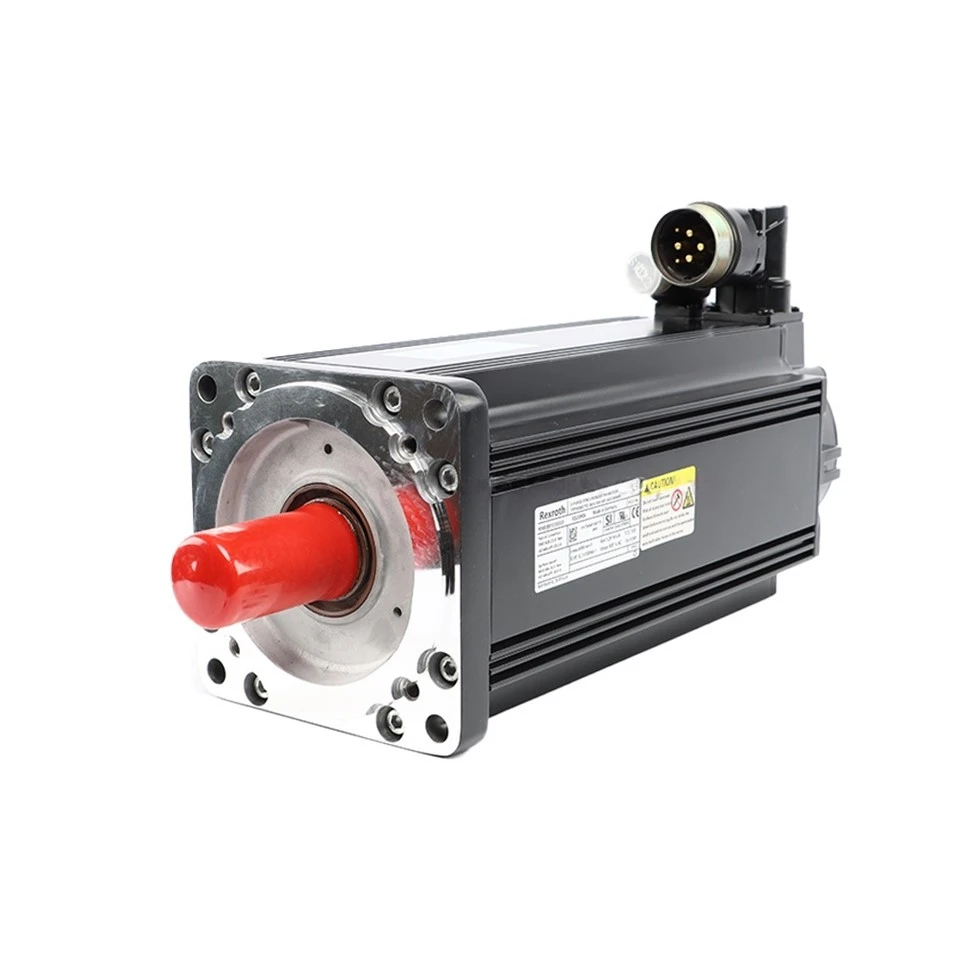

MSK075C

Product Overview

▔▔
The Rexroth MSK075C is a high-performance synchronous servo motor and drive unit widely integrated into precision variable-speed hydraulic pump systems (such as Rexroth Sytronix systems). Positioned as a medium-frame size industrial drive component, its primary control functions include high-dynamic speed regulation, precise closed-loop torque control, and synchronized flow-pressure ($p/Q$) output management. It is specifically engineered for precision hydraulic control scenarios requiring high repeatability, low noise, and strict energy efficiency, such as injection molding machinery, metal forming presses, and high-precision bending equipment. Key Highlights: Series MSK + Frame Size 075C + High-Dynamic Servo-Hydraulic Drive Integration, delivering exceptional energy savings and precise fluid control.

Key Advantages

• High torque density enabling a compact mechanical footprint without sacrificing output capability.
• Advanced encoder integration options providing fine-resolution feedback for exceptional closed-loop performance.
• Robust IP65 protection class, ensuring reliable operation in harsh industrial conditions including dust and moisture.
• Flexible cooling design options ranging from natural convection to optimized forced ventilation and liquid cooling.

Technical Specifications

▔▔

Configuration Options

• Structure: Compact cylindrical housing with standardized flange mounting dimensions.
• Control Mode: Compatible with digital servo drives (IndraDrive controllers) supporting vector and pulse-width modulation control.
• Feedback Options: Integrated encoder systems available in single-turn and multi-turn configurations with high-resolution optical or inductive sensing.
• Shaft Options: Available with plain shaft or shaft with keyway according to DIN 6885-1 for secure torque transmission.
• Holding Brake: Optional electrically released holding brake for vertical axis security and safe standstill.
• Electrical Connection: Rotatable connector socket or innovative single-cable connection technology for power and feedback signals.
• Installation Form: IM B5 flange mounting style suitable for horizontal or vertical installation.

Key Materials and Components

▔▔

• Electromagnetic Core: High-grade laminated electrical steel sheets designed to minimize eddy current losses and maximize magnetic flux density.
• Winding Insulation: Premium enamel-coated copper wire with advanced resin impregnation providing high thermal resistance and dielectric strength.
• Rotor Assembly: High-energy permanent magnets (rare earth materials) offering superior resistance to demagnetization under peak overload conditions.
• Housing and Seals: Corrosion-resistant aluminum alloy housing combined with durable fluoropolymer shaft seals ensuring IP65 protection against fluid ingress.

Packaging and Transport Protection

▔▔

• Industrial Packaging: Heavy-duty corrugated cardboard boxes reinforced with custom-molded high-density foam inserts to cushion impact loads.
• Moisture Protection: Vacuum-sealed anti-static plastic wrapping containing silica gel desiccant packs to prevent humidity corrosion during transit and storage.
• Shock Resistance and Fixation: Secure mechanical immobilization inside the outer carton to eliminate shifting or bearing damage during freight handling.
• Batch Packaging: Palletized and shrink-wrapped for bulk industrial shipments, complete with clear external barcode and product identification labels.

Applications

• CNC Machine Tools: Used in feed axes and auxiliary spindle positioning drives to achieve micron-level contouring accuracy.
• Packaging and Converting Machinery: Installed in high-speed rotary cutters and web-tensioning synchronization systems for precise indexing control.
• Robotics and Handling Systems: Applied in multi-axis articulated arms and pick-and-place gantry loaders requiring rapid dynamic response.
• Printing and Textile Equipment: Deployed in synchronization rollers and register control units to maintain uniform tension and high throughput speed.

Related Models

▔▔

FAQ

Q1: How do I confirm the exact replacement model for my application?

A: Check the nameplate on your existing motor to verify the complete type code, including the winding code, feedback version, and holding brake specification. You can also send the nameplate photo to our team for instant cross-referencing.

Q2: Does this servo motor require specific filtration or oil compatibility?

A: As an electric synchronous servo motor, it does not use hydraulic oil for internal operation. However, when mounted in close proximity to hydraulic gearboxes or fluid actuators, ensure proper external sealing to prevent oil contamination on the shaft seal.

Q3: Can I replace an older Indramat motor directly with the MSK075C?

A: Direct replacement depends on the mechanical flange dimensions, shaft dimensions, and drive firmware compatibility. Our technical support team can assist you with proper cross-matching and parameter conversion.
