Product Overview

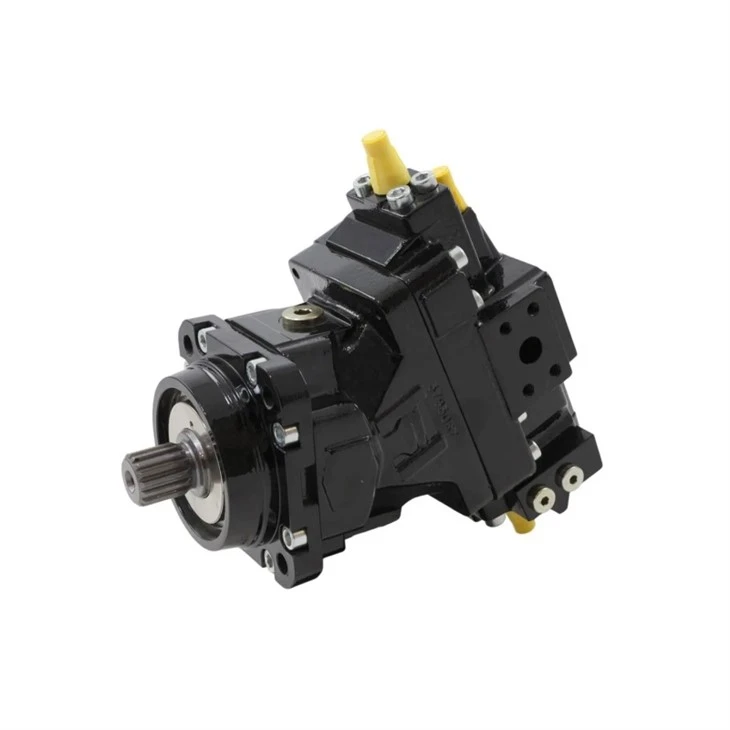

▔▔The Parker V12 Series represents the gold standard in bent-axis variable displacement hydraulic motors. Engineered for both open and closed-loop hydrostatic transmissions, these motors are designed to deliver top-tier efficiency, speed, and reliability in the most demanding environments.
Key Advantages
▔▔-
Unmatched Efficiency: Thanks to a unique spherical piston design, the V12 motor minimizes internal leakage, ensuring maximum volumetric and mechanical efficiency.
Wide Displacement Range: With a 5:1 displacement ratio, it can seamlessly shift from maximum displacement (high torque) to minimum displacement (high speed).
High-Speed Capability: Capable of reaching extreme revolutions per minute (rpm), making it ideal for high-performance machinery.
Compact & Lightweight: The bent-axis geometry allows for a highly compact design that saves valuable installation space without sacrificing power.
Proven Durability: Built with high-quality materials to withstand extreme pressure shocks and harsh operating conditions.
-
Technical Specifications
▔▔| Parameter | Specification / Range |
| Motor Type | Bent-axis variable displacement hydraulic motor |
| Maximum Operating Pressure | Up to 480 bar (6,960 PSI) |
| Intermittent Peak Pressure | Up to 500 bar (7,250 PSI) |
| Displacement Ratio | 5:1 |
| Minimum / Maximum Angle | 6° to 33° |
| Fluid Temperature Range | -40°C to 115°C (-40°F to 239°F) |
| Supported Fluids | Mineral-based hydraulic oils, fire-resistant fluids |
Applications
▔▔| Industry | Machine / Application | Why the V12 is Used |
| Construction | Excavators, Track Drives, and Drilling Rigs | Provides the high torque needed to dig or move tracks, and high speed for traveling. |
| Agriculture | Harvesters and Forestry Machinery | Delivers smooth speed adjustments over uneven fields and rough terrain. |
| Marine & Offshore | Winches, Cranes, and Propulsion Systems | Resists harsh environments while offering precise control over heavy lifting. |
| Material Handling | Heavy-duty Forklifts and Reach Stackers | Ensures fast cycle times and smooth lifting/lowering transitions. |
Related Models
▔▔| Model / Frame Size | Max Displacement (cm3/rev) | Min Displacement (cm3/rev) | Max Speed at Min Displacement (rpm) | Max Flow Rate (L/min) |
| V12-060 | 60.0 | 12.0 | 7,000 | 225 |
| V12-080 | 80.0 | 16.0 | 6,300 | 265 |
FAQ
▔▔Q1: What makes a "bent-axis" motor different from an "inline" hydraulic motor?
A: In an inline motor, the pistons sit parallel to the drive shaft. In a bent-axis motor like the V12, the cylinders are set at an angle to the drive shaft. This angled design reduces friction, allows for higher rotational speeds, and enables a much wider range of variable displacement.
Q2: Can the Parker V12 motor be used in both open and closed hydraulic loops?
A: Yes. The V12 motor is highly versatile and engineered to work efficiently in both open-circuit and closed-circuit hydrostatic transmissions, depending on your system's design and valving.
Contact Us
▔▔Request a Quote Today to ensure your hydraulic system performs at its best with genuine components from Yanhui Hydraulic.
