Guangdong Yanhui Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of parker m2a33912t20nb high speed hydraulic motor in China. We warmly welcome you to wholesale bulk parker m2a33912t20nb high speed hydraulic motor for sale here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.
Why Choose Yanhui Hydraulic?
▔▔
- Professional consultation on valve selection and installation
- Assistance with technical specifications and system integration
- Access to genuine parts and other top hydraulic brands
- Quick and safe shipping worldwide
- Reliable after-sales service and troubleshooting guidance

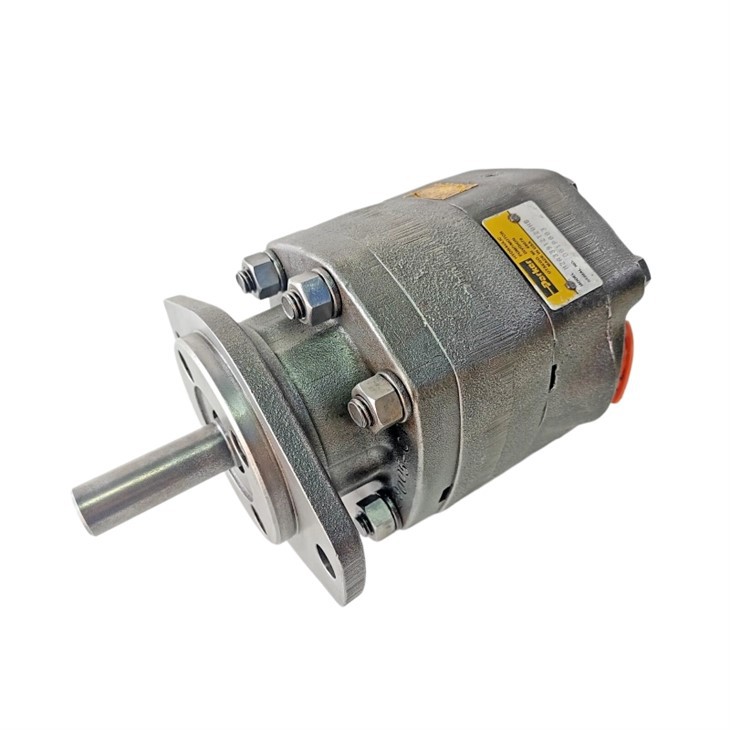

Product Overview
▔▔
The Parker M2A33912T20NB features advanced engineering for optimal speed and torque characteristics. Its compact design allows integration into tight spaces without compromising performance. Designed for continuous operation, this high-speed hydraulic motor ensures minimal wear and extended service life.
Key Advantages
▔▔
- Efficient power-to-weight ratio
- High-speed operation with stable torque output
- Low noise and vibration for safer work environments
- Compatibility with a wide range of hydraulic systems
Technical Specifications
▔▔
| Parameter | Specification |
|---|---|
| Model Number | M2A33912T20NB |
| Motor Type | High-Speed Hydraulic Motor |
| Series | Parker M2 High-Speed Series |
| Displacement | 33.9 cm³/rev |
| Maximum Operating Pressure | 210 bar (3045 psi) |
| Maximum Speed | 5000 RPM |
| Torque Output | 85 Nm |
| Weight | 18 kg |
| Shaft Type | Splined |
| Mounting Type | SAE Flange |
| Port Type | SAE Straight Thread |
| Case Drain | Internal or optional external |
| Seal Type | Nitrile (standard), Viton optional |
| Fluid Compatibility | Mineral-based hydraulic oil |
| Recommended Viscosity Range | 13.5–1000 cSt |
| Operating Temperature Range | -40°C to +82°C |
Applications
▔▔
- Mobile machinery: construction and agricultural equipment
- Industrial conveyors and production lines
- Hydraulic presses and material handling systems
- High-speed pumps in fluid power systems
- Marine and offshore hydraulic systems
FAQ
▔▔
Q1: What is the recommended operating pressure range for the M2A33912T20NB?
A1: The motor is designed for continuous operation at pressures up to 210 bar (3045 psi). Intermittent pressure peaks can be handled up to 240 bar (3480 psi), but sustained operation beyond the rated pressure may reduce lifespan. Always ensure system relief valves are correctly set.
Q2: What hydraulic fluids are compatible with this motor?
A2: Use mineral-based hydraulic oils with anti-wear (AW) additives. Viscosity should be between 13.5–1000 cSt. For synthetic or bio-based fluids, consult the manufacturer regarding seal compatibility. Avoid fluids that may degrade nitrile seals.
Q3: What is the maximum continuous speed and torque for this motor?
A3: Maximum speed is 5000 RPM with a torque output of 85 Nm at rated pressure. Torque decreases slightly at higher speeds due to mechanical losses, so ensure the system design accounts for operating conditions.
